JDS-07A Drawer Connector
JDS-07A Drawer Connector
| Part No.: | JDS-07A |
| Connector Type: | Drawer Connector |
| Mechanical Life: | 1000 cycles |
| Insulation Resistance: | ≥1000MΩ |
| Housing Material: | PBT G6 UL94V-0 black |
| Special Feature: | The JDS series drawer type power connector is used in the fields of charging pile power supply, communication module power supply, power module power supply, UPS power supply, inverter power supply, photovoltaic inverter power supply, rail traffic control power supply |
Electrical Specifications
| Power Contact | Signal Contact | ||
| Contact Size | Φ5.0 | 20# | Φ2.0 |
| Pin Size | Φ1.01 | ||
| Quantity | 2 | 4 | 1 |
| Rated Current(A) | 5 | ||
| Rated Voltage(V) | / | / | / |
| Contact Resistance(mΩ) | ≤5.0 | ||
| Withstand Voltage(V) | 3000 | 1000 | 1000 |
| Surface Material | Silver plated over nickel | Gold plated over nickel | |
| Terminal Style | Pin: Right angle PCB tail（B） Socket: crimping(Y) | ||
Operating Environment
| Operating Temperature | –55 to +125℃ |
| Relative Humidity | 98% (40 ℃) |
| Vibration | 10～2000Hz (acceleration 147m/s2) |
| Shock | Acceleration 980m/s2 |

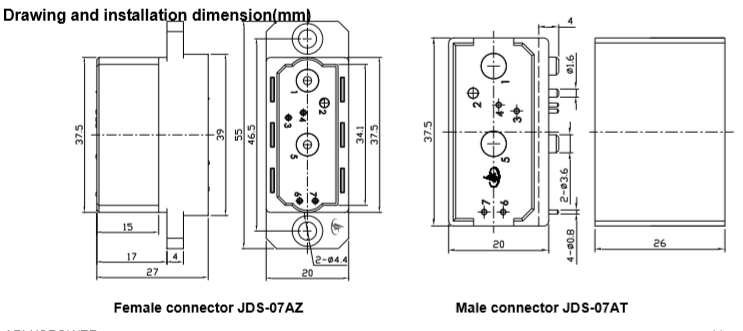

Drawing and Installation Dimensions
Contacts Terminal Style
| Crimping | Solder Cup | PCB tail | Internal Thread | External Thread | |
| Y | H | B | B(curved needle) | N | W |
 |
 |
 |
 |
 |
 |
Remark: terminal type shown for pin contact, the number of pin contacts same as the sockets, besides, the crimping terminal type for the male connector, but not for female connector. |
|||||
Contacts Assembling
| Contacts Specification | Terminal Style |
B(mm) | Wire Stripping Length(mm) | Lead wire Size(AWG) |
| 22# | B | Φ0.8 | / | / |
| 20# | Y | Φ1.1 | 6.0 | 20-24 |
| H | Φ1.3 | 4.0 | / | |
| B | Φ1.0 | / | / | |
| 16# | Y | Φ1.8 | 6.5 | 16 |
| H | Φ2.2 | 5.0 | / | |
| B | Φ1.57 | / | / | |
| 12# | Y | Φ2.7 | 6.5 | 12/14 |
| Φ3.2 | 6.5 | 10 | ||
| H | Φ2.8 | 5.0 | / | |
| B | Φ2.38 | / | / | |
| 8# | Y | Φ4.5 | 10.0 | 8/10 |
| Φ5.8 | 12.5 | 6 | ||
| H | Φ4.8 | 6.5 | / | |
| B | Φ3.6 | / | / | |
| 4# | Y | Φ7.3 | 12.5 | 4/6 |
| N | Φ5.0 | / | / | |
| W | Φ5.0 | / | / | |
| 0# | Y | Φ11.5 | 15.0 | 0-2 |
| N | Φ6.0 | / | / | |
| W | Φ6.0 | / | / |
