07 Pins Drawer Connector,JDS-07
| Part No.: | JDS-07 |
| Connector Type: | Drawer Connector |
| Mechanical Life: | 1000 cycles |
| Insulation Resistance: | ≥1000MΩ |
| Housing Material: | PBT G6 UL94V-0 black |
| Special Feature: | •Custom design flexibility |
Electrical Specifications
| Power Contact | Signal Contact | |
| Contact Size | 12# | 20# |
| Pin Size | Φ2.38 | Φ1.01 |
| Quantity | 3 | 4 |
| Rated Current(A) | 35 | 5 |
| Rated Voltage(V) | / | / |
| Contact Resistance(mΩ) | ≤1.0 | ≤5.0 |
| Withstand Voltage(V) | 3000 | 1000 |
| Surface Material | Silver plated over nickel | Gold plated over nickel |
| Terminal Style | Pin:PCB tail(B);Socket;crimping(Y),PCB tail(B),solder cup(H) | |
Operating Environment
| Operating Temperature | –55 to +125℃ |
| Relative Humidity | 98% (40 ℃) |
| Vibration | 10～2000Hz (acceleration 147m/s2) |
| Shock | Acceleration 980m/s2 |

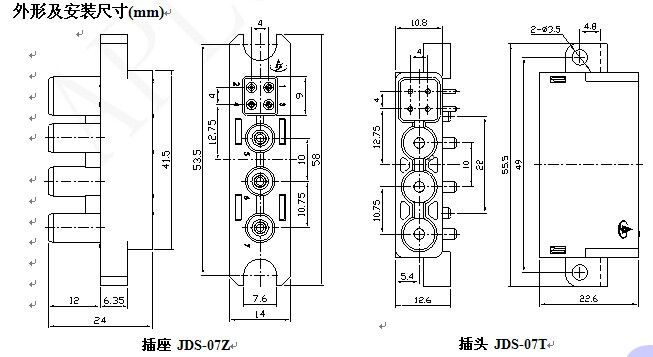

Drawing and Installation Dimensions
Contacts Terminal Style
| Crimping | Solder Cup | PCB tail | Internal Thread | External Thread | |
| Y | H | B | B(curved needle) | N | W |
 |
 |
 |
 |
 |
 |
Remark: terminal type shown for pin contact, the number of pin contacts same as the sockets, besides, the crimping terminal type for the male connector, but not for female connector. |
|||||
Contacts Assembling
| Contacts Specification | Terminal Style |
B(mm) | Wire Stripping Length(mm) | Lead wire Size(AWG) |
| 22# | B | Φ0.8 | / | / |
| 20# | Y | Φ1.1 | 6.0 | 20-24 |
| H | Φ1.3 | 4.0 | / | |
| B | Φ1.0 | / | / | |
| 16# | Y | Φ1.8 | 6.5 | 16 |
| H | Φ2.2 | 5.0 | / | |
| B | Φ1.57 | / | / | |
| 12# | Y | Φ2.7 | 6.5 | 12/14 |
| Φ3.2 | 6.5 | 10 | ||
| H | Φ2.8 | 5.0 | / | |
| B | Φ2.38 | / | / | |
| 8# | Y | Φ4.5 | 10.0 | 8/10 |
| Φ5.8 | 12.5 | 6 | ||
| H | Φ4.8 | 6.5 | / | |
| B | Φ3.6 | / | / | |
| 4# | Y | Φ7.3 | 12.5 | 4/6 |
| N | Φ5.0 | / | / | |
| W | Φ5.0 | / | / | |
| 0# | Y | Φ11.5 | 15.0 | 0-2 |
| N | Φ6.0 | / | / | |
| W | Φ6.0 | / | / |
